Quadra Plus 9 with XT Touch Dispenser & Paddle Mixer
Boiling & chilled water for up to 60 people
Boiling
Chilled
The Quadra Plus 9 pairs an XT touch-sensitive dispenser for filtered boiling and chilled water with a separate paddle mixer for hot and cold sink water. Its under-counter unit serves workplaces of up to 60 people without requiring cabinet ventilation grilles.
- Up to 60 people
- XT Touch
- 340 (H) x 315 (W) x 465 (D) mm
Finish
Chrome
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 60 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug.
Built into every Quadra Plus 9 with XT Touch Dispenser & Paddle Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 9 with XT Touch Dispenser & Paddle Mixer |
|---|---|
| Product code | 904065TP |
| Suggested capacity | Up to 60 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XT Touch |
| Finish options | Brushed, Chrome, Matte Black, Matte White |
| Mixer tap options | Paddle Lever Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |

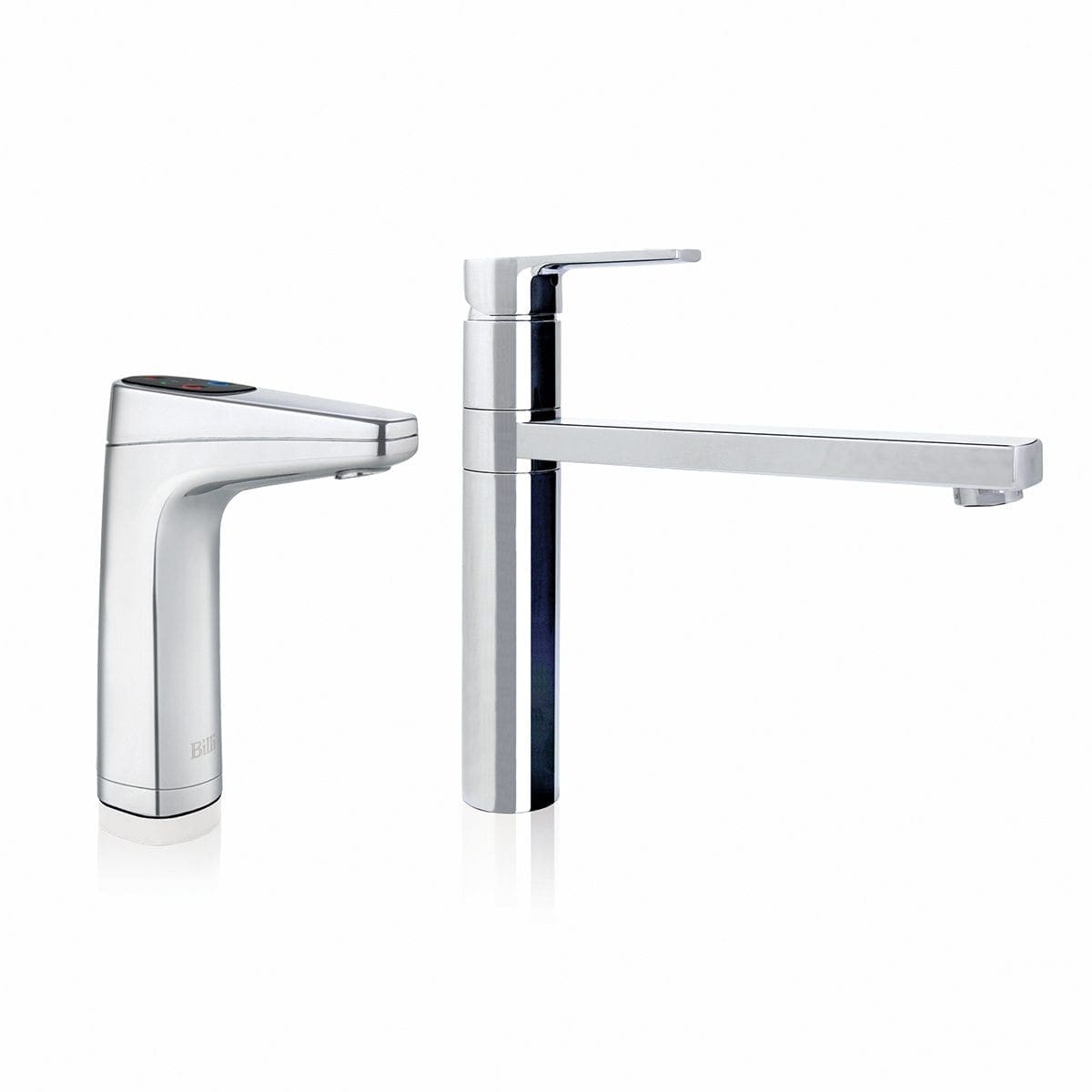

The XT dispenser uses touch-sensitive controls on the tap to select filtered boiling or chilled water. Alongside it, a separate paddle mixer provides ordinary hot and cold water for the sink, so the drinking-water outlet has its own place in a shared kitchen.
The Quadra Plus 9 produces mixer hot water using the incoming cold mains supply. Beneath the worktop, its water-cooled heat exchange technology removes the need for ventilation grilles in the cabinetry.
This version is rated for workplaces of up to 60 people. The XT controls are touch-sensitive rather than touchless, which is an important distinction when describing how the dispenser operates.
