Billi Quadra 460 with XL Levered Dispenser
Boiling
Chilled
View product

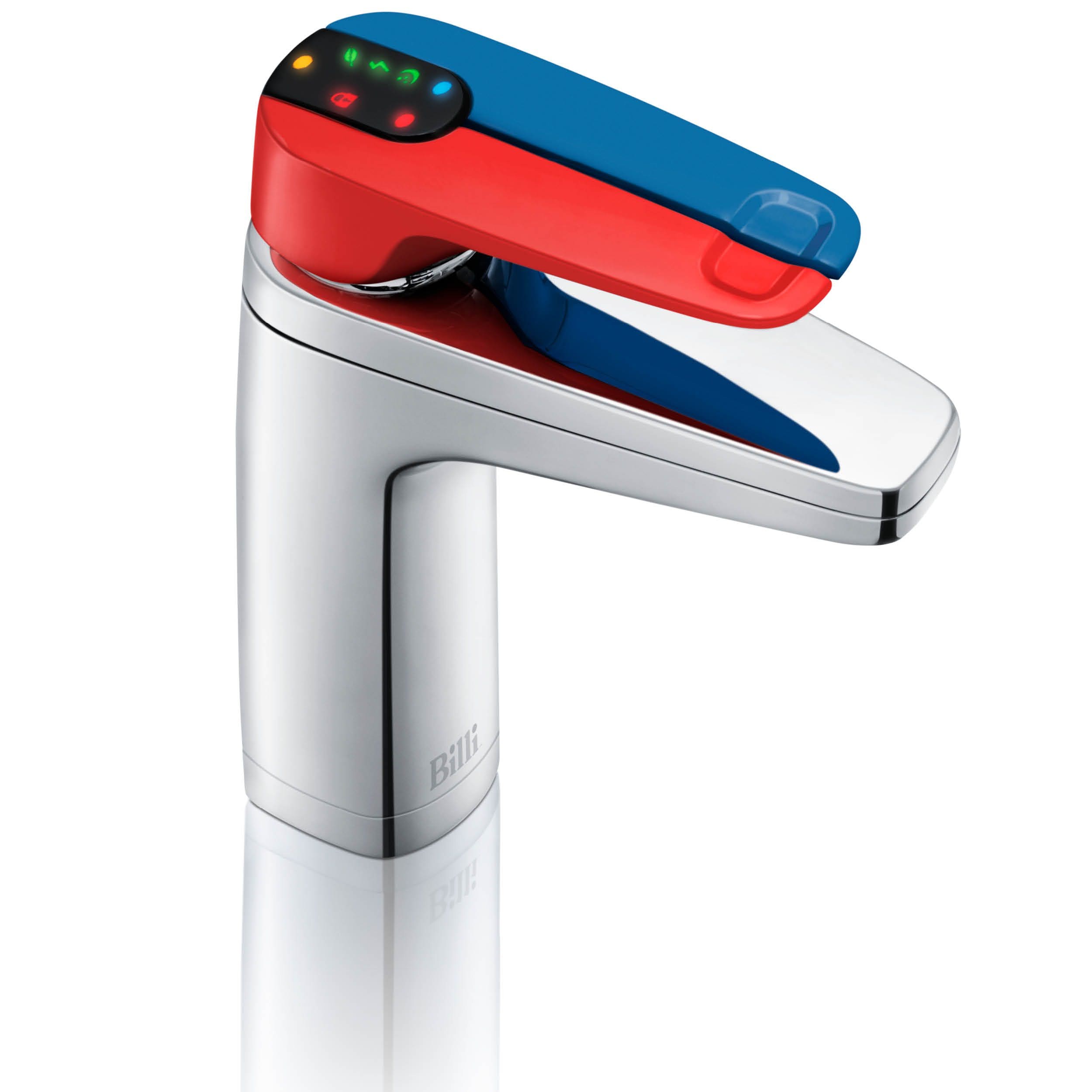

Quadra Sparkling 460 with XL Levered Dispenser and Red/Blue levers
Boiling, chilled & sparkling water for up to 60 people
Boiling
Chilled
Sparkling
The Quadra Sparkling 460 provides filtered boiling, chilled and sparkling water from an XL dispenser with contrasting red and blue levers. Rated for up to 60 people, it also offers adjustable chilling and carbonation.
Red/Blue levers are available with alternative dispenser finishes, with optional braille pads also available upon request.
- Up to 60 people
- XL Levered
- Cupboard space required 500mm or 600m for sparkling models.
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 60 people
- Outputs
- Boiling, Chilled, Sparkling
- Under-bench unit
- Cupboard space required 500mm or 600m for sparkling models.
- Power supply
- A 13amp double switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug.
Built into every Quadra Sparkling 460 with XL Levered Dispenser and Red/Blue levers
-
Plus Models Available
-
Energy Efficient
-
Easy Installation
-
Safe To Operate
-
Adjustable Chilled Temperature
-
Adjustable Sparkling Level
-
Eco-Intelligence Technology
What you get with Billi
-
WarrantyThe Billi Quadra Range is covered by a comprehensive 2 year warranty on all parts and labour.
-
DeliveryThe CO2 gas cylinder supplied must be secured in a suitable location. Each cylinder contains 1100g of CO2 and should be installed in a well ventilated area. Each cylinder will provide 160 litres of sparkling water depending on the unit settings. The MSDS is available on www.billi-uk.com for a complete list of specifications and warnings. Replacement gas cylinders are available from Billi. CO2 Cylinder - Order code 996911 and select chosen quantity (single, twin, 6-pack)
Full specification
Full specification 11 items
| Model | Billi Quadra Sparkling 460 with XL Levered Dispenser and Red/Blue levers |
|---|---|
| Product code | 906060LRB |
| Suggested capacity | Up to 60 people |
| Water outputs | Boiling, Chilled, Sparkling |
| Dispenser design | XL Levered |
| Finish options | Chrome |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For XL Sparkling - Extension Kit |
| Under-bench unit size | Cupboard space required 500mm or 600m for sparkling models. |
| Power supply | A 13amp double switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |
This Quadra Sparkling 460 configuration adds contrasting red and blue levers to the XL dispenser. The colour difference can make the drinking-water controls easier to distinguish visually, although accessibility depends on the complete installation and should be assessed at the design stage.
The dispenser provides filtered boiling, chilled and sparkling water from one position, with adjustable chilled-water temperature and carbonation. Billi specifies the system for workplaces of up to 60 people. Its under-counter equipment includes the chilling and sparkling components as well as the boiling-water supply.
A CO2 cylinder is required for sparkling water and must be secured in a suitable, well-ventilated location. Allow for the full equipment and cylinder footprint when planning the cupboard.
Drawings, data sheets & guides
Everything here is free to download. No form, no sign-up.
Request a quote
Tell us about your site and we’ll come back with a written quote for Quadra Sparkling 460 with XL Levered Dispenser and Red/Blue levers.
Rather talk it through? Call 020 7456 6789 , or download the spec sheet instead.
Not sure which model fits your site?
Tell us how many people you need to serve and where it’s going, and we’ll
recommend the right unit, or send an engineer to look at the space first.
