Quadra Plus 9 with XL Levered Dispenser and Red/Blue Levers & Gooseneck Mixer
Boiling & chilled water for up to 60 people
Boiling
Chilled
Filtered boiling and chilled drinking water from a colour-coded XL levered dispenser, alongside a separate gooseneck mixer for hot and cold sink water. The Quadra Plus 9 is rated for up to 60 people and requires only a cold mains water feed.
Red/Blue levers are available with alternative dispenser finishes, with optional braille pads also available upon request.
- Up to 60 people
- XL Levered
- 340 (H) x 315 (W) x 465 (D) mm
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 60 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug.
Built into every Quadra Plus 9 with XL Levered Dispenser and Red/Blue Levers & Gooseneck Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 9 with XL Levered Dispenser and Red Blue Levers & Gooseneck Mixer |
|---|---|
| Product code | 904065LGRB |
| Suggested capacity | Up to 60 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XL Levered |
| Finish options | Chrome |
| Mixer tap options | Gooseneck Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |

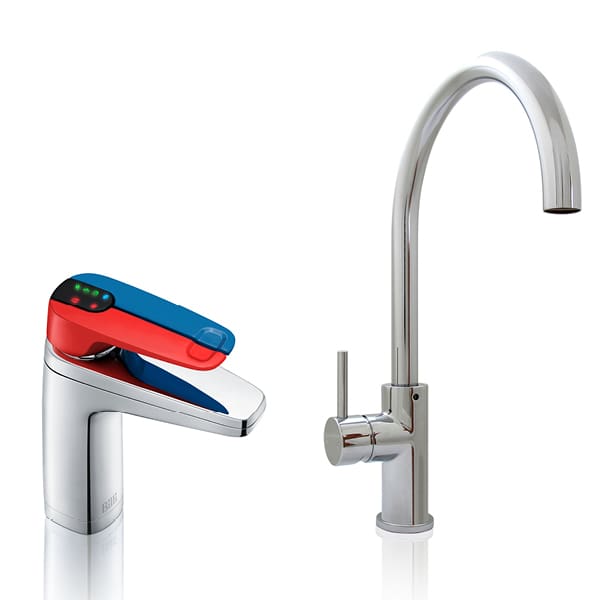

The curved gooseneck mixer gives this Quadra Plus 9 configuration a separate tap for everyday sink use, leaving the XL dispenser available for filtered boiling and chilled drinking water. Contrasting red and blue levers on the drinking-water tap help users distinguish the controls more easily.
The under-counter unit heats water for the mixer from the incoming cold mains supply, removing the need for a separate hot-water feed to the system. Water-cooled heat exchange also means ventilation grilles are not needed in the cabinetry around the unit.
Rated for workplaces of up to 60 people, this configuration is worth considering where a separate sink mixer and more visually distinct drinking-water controls are required.
