Quadra Plus 9 with XR Remote Dispenser & Gooseneck Mixer
Boiling & chilled water for up to 60 people
Boiling
Chilled

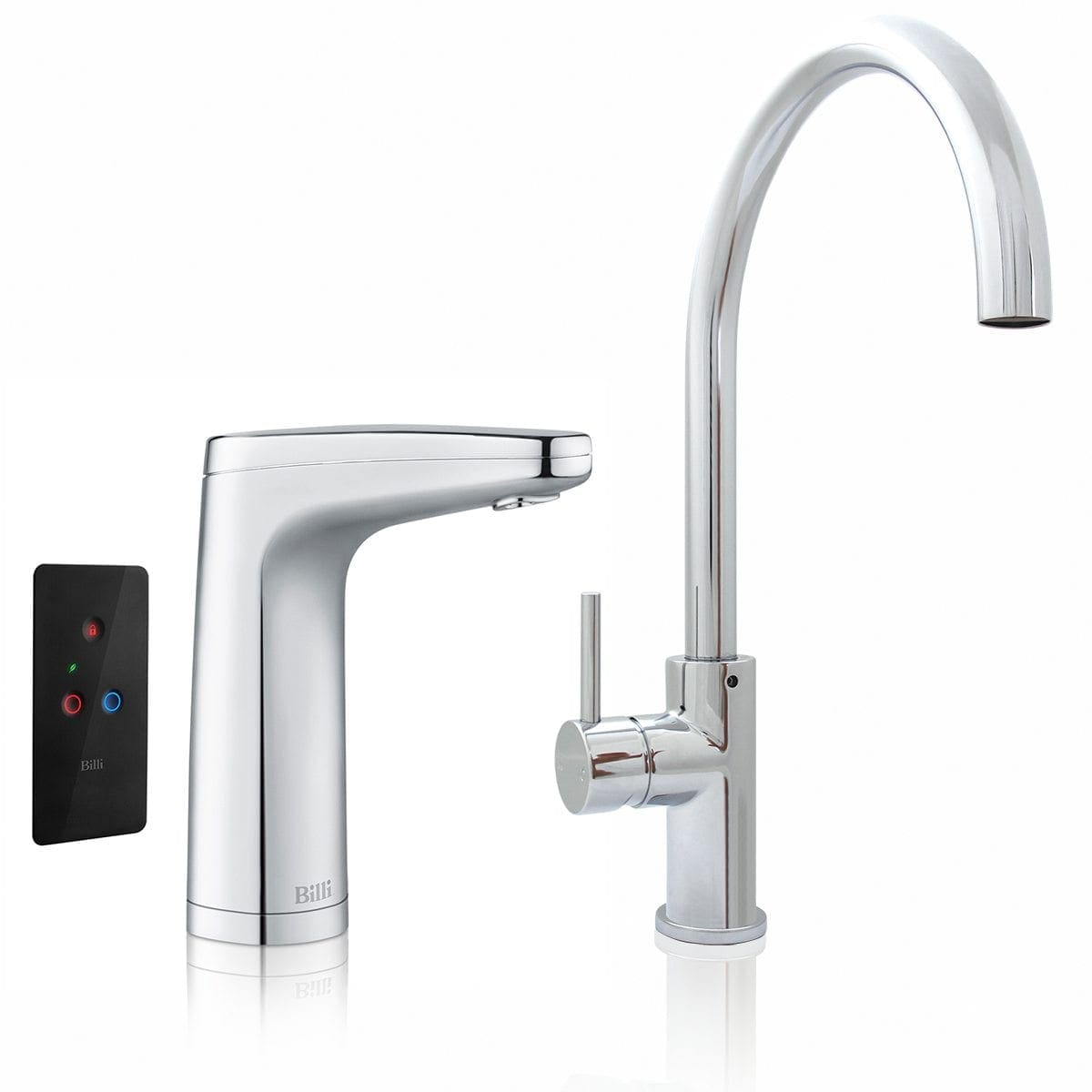

The Quadra Plus 9 supplies filtered boiling and chilled water through an XR dispenser, with a separate gooseneck mixer for hot and cold sink water. Its drinking-water controls sit on a remote panel, and it is rated for up to 60 people.
- Up to 60 people
- XR Remote
- 340 (H) x 315 (W) x 465 (D) mm
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 60 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug.
Built into every Quadra Plus 9 with XR Remote Dispenser & Gooseneck Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 9 with XR Remote Dispenser & Gooseneck Mixer |
|---|---|
| Product code | 904065RG |
| Suggested capacity | Up to 60 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XR Remote |
| Finish options | Chrome |
| Mixer tap options | Gooseneck Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A 13amp single switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |
The XR version of the Quadra Plus 9 places the drinking-water controls on a separate panel rather than on the tap itself. This gives more flexibility over their position when planning a shared kitchen, particularly where different users’ access needs need to be considered.
Filtered boiling and chilled water are dispensed from the dedicated drinking-water tap, while a separate gooseneck mixer provides hot and cold water at the sink. The system heats the mixer’s hot water using a cold mains feed, so there is no need for a second under-counter heater.
Rated for workplaces of up to 60 people, the Quadra Plus 9 uses water-cooled heat-exchange technology and needs no ventilation grilles in the surrounding cabinetry.
