Billi Quadra 460 with XL Levered Dispenser
Boiling
Chilled
View product
Quadra Sparkling Plus 9 with XL Levered Dispenser and Red Blue Levers & Gooseneck Mixer
Boiling, chilled & sparkling water for up to 60 people
Boiling
Chilled
Sparkling
The Quadra Sparkling Plus 9 provides filtered boiling, chilled and sparkling water through an XL dispenser with contrasting red and blue levers. A separate gooseneck mixer supplies hot and cold sink water. Rated for workplaces of up to 60 people.
- Up to 60 people
- XL Levered
- Cupboard space required 500mm or 600m for sparkling models.
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 60 people
- Outputs
- Boiling, Chilled, Sparkling

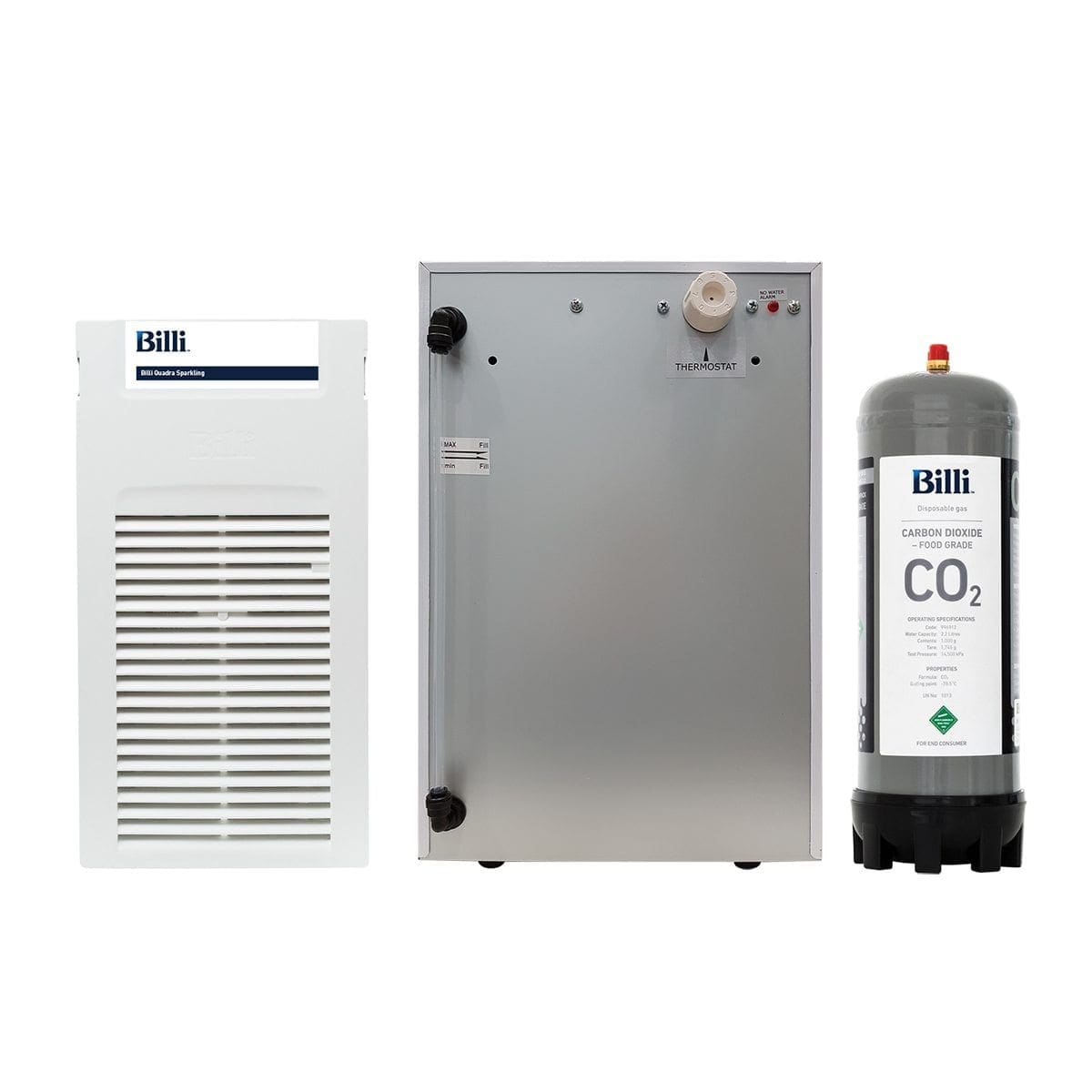

- Under-bench unit
- Cupboard space required 500mm or 600m for sparkling models.
- Power supply
- A 13amp double switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug.
Built into every Quadra Sparkling Plus 9 with XL Levered Dispenser and Red Blue Levers & Gooseneck Mixer
-
Safe To Operate
-
Energy Efficient
-
Adjustable Chilled Temperature
-
Adjustable Sparkling Level
-
Water Cooled Technology
-
Eco-Intelligence Technology
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Sparkling Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
-
DeliveryThe CO2 gas cylinder supplied must be secured in a suitable location. Each cylinder contains 1100g of CO2 and should be installed in a well ventilated area. Each cylinder will provide 160 litres of sparkling water depending on the unit settings. The MSDS is available on www.billi-uk.com for a complete list of specifications and warnings. Replacement gas cylinders are available from Billi. CO2 Cylinder - Order code 996911 and select chosen quantity (single, twin, 6-pack)
Full specification
Full specification 12 items
| Model | Billi Quadra Sparkling Plus 9 with XL Levered Dispenser and Red Blue Levers & Gooseneck Mixer |
|---|---|
| Product code | 906065LGRB |
| Suggested capacity | Up to 60 people |
| Water outputs | Boiling, Chilled, Sparkling |
| Dispenser design | XL Levered |
| Finish options | Chrome |
| Mixer tap options | Paddle Lever Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Dual Dispenser - 2mtrs, For Mixer Tap - 1.8mtrs |
| Under-bench unit size | Cupboard space required 500mm or 600m for sparkling models. |
| Power supply | A 13amp double switched socket must be positioned at a high level and accessible within the cupboard. The unit comes with a 1 meter flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |
Where a kitchen needs sparkling water as well as everyday hot drinks, the Quadra Sparkling Plus 9 provides boiling, chilled and sparkling filtered water from its XL dispenser. The red and blue levers offer greater visual contrast, while the separate curved gooseneck mixer is used for hot and cold water at the sink.
Chilled-water temperature and the level of carbonation can be adjusted. The system also produces mixer hot water from the cold mains feed, avoiding the need for a separate hot-water supply to the unit.
This configuration is specified for up to 60 people. The installation must also accommodate a secured CO2 cylinder in a well-ventilated location, so its position should be planned alongside the under-counter equipment.
