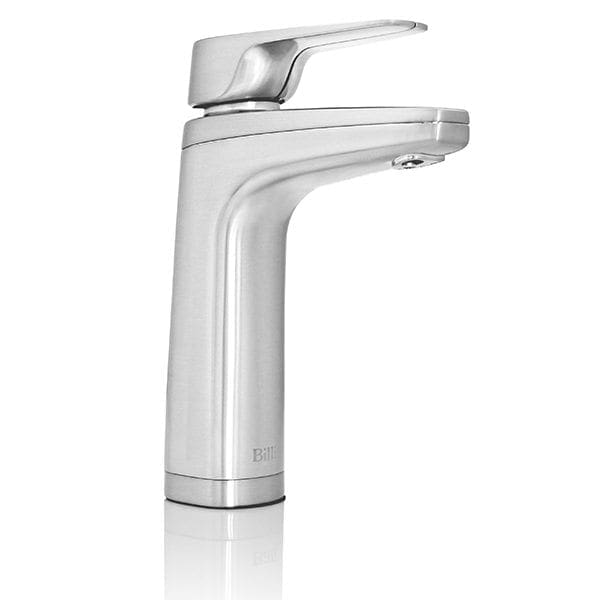

Quadra 4100 with XL Levered Dispenser
Boiling & chilled water for up to 100 people
Boiling
Chilled
The Quadra 4100 supplies filtered boiling and chilled water for commercial kitchens serving up to 100 people. Its XL levered dispenser provides familiar controls, while the water-cooled system sits beneath the counter without needing cupboard ventilation grilles.
- Up to 100 people
- XL Levered
- 340 (H) x 315 (W) x 465 (D) mm
Finish
Chrome
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 100 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord.
Built into every Quadra 4100 with XL Levered Dispenser
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 11 items
| Model | Billi Quadra 4100 with XL Levered Dispenser |
|---|---|
| Product code | 904100L |
| Suggested capacity | Up to 100 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XL Levered |
| Finish options | Brushed, Chrome, Gun Metal Grey, Matte Black, Matte White, Urban Brass |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Dual Dispenser - 2mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord. |
| Supplier | Billi UK Limited, 020 7456 6789 |
Larger workplaces can put considerable demand on a shared kitchen. The Quadra 4100 is Billi's higher-capacity boiling and chilled system, rated for up to 100 people, with an XL levered dispenser for everyday use.
Its position-sensitive levers let users control the flow of filtered boiling and chilled water from the same tap. The main system sits beneath the worktop, where water-cooled heat exchange technology recovers waste heat to support energy efficiency.
The Quadra 4100 also removes the need for ventilation grilles in the surrounding cabinetry. It has a higher suggested user capacity than the Quadra 460, while Billi lists the same under-counter unit dimensions for both models.
