Quadra 4100 with XT Touch Dispenser
Boiling & chilled water for up to 100 people
Boiling
Chilled

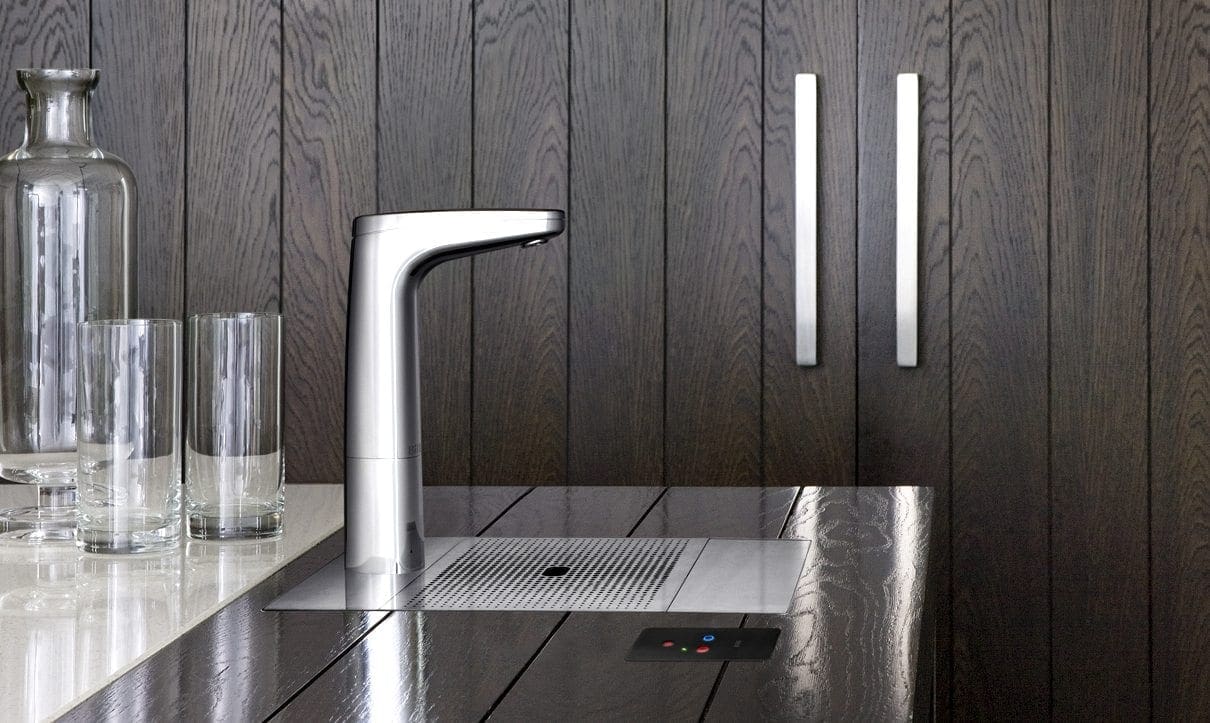

The Quadra 4100 with XT touch dispenser provides filtered boiling and chilled water for workplaces of up to 100 people. Its integrated touch panel replaces the usual levers, with a water-cooled system installed beneath the counter.
- Up to 100 people
- XT Touch
- 340 (H) x 315 (W) x 465 (D) mm
Finish
Chrome
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 100 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord.
Built into every Quadra 4100 with XT Touch Dispenser
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Range is covered by a comprehensive 2 year warranty on all parts and labour
Full specification
Full specification 11 items
| Model | Billi Quadra 4100 with XT Touch Dispenser |
|---|---|
| Product code | 904100T |
| Suggested capacity | Up to 100 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XT Touch |
| Finish options | Brushed, Chrome, Matte Black, Matte White |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Dual Dispenser - 2mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord. |
| Supplier | Billi UK Limited, 020 7456 6789 |
The XT version gives the Quadra 4100 a different style of control without changing its suggested capacity of up to 100 people. Boiling and chilled filtered water are dispensed through a touch-sensitive panel integrated into the tap, offering an alternative to the XL's traditional levers.
It is suited to larger shared kitchens that need a high-capacity drinking-water system but prefer the appearance and operation of a touch dispenser.
Beneath the worktop, Billi's water-cooled heat exchange technology recovers waste heat to support energy efficiency. It also removes the need for ventilation grilles in the surrounding cabinetry, helping keep the installation straightforward to plan.
Drawings, data sheets & guides
Everything here is free to download. No form, no sign-up.
Data sheets
Drawings & CAD
Installation
User guides
Request a quote
Tell us about your site and we’ll come back with a written quote for Quadra 4100 with XT Touch Dispenser.
Rather talk it through? Call 020 7456 6789 , or download the spec sheet instead.
Not sure which model fits your site?
Tell us how many people you need to serve and where it’s going, and we’ll
recommend the right unit, or send an engineer to look at the space first.
