Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer
Boiling & chilled water for up to 100 people
Boiling
Chilled

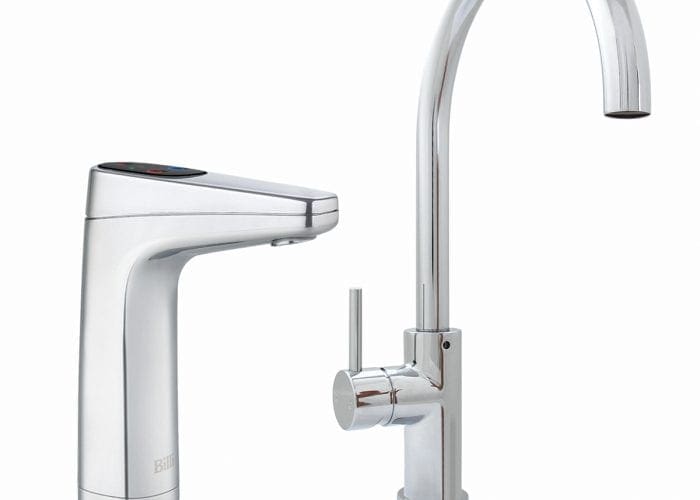

The Quadra Plus 15 supplies filtered boiling and chilled drinking water through an XL levered dispenser, with a separate gooseneck mixer for hot and cold sink water. Its higher-capacity system is rated for workplaces of up to 100 people.
- Up to 100 people
- XL Levered
- 340 (H) x 315 (W) x 465 (D) mm
Finish
Chrome
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 100 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug
Built into every Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 15 with XL Levered Dispenser & Gooseneck Mixer |
|---|---|
| Product code | 904105LG |
| Suggested capacity | Up to 100 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XL Levered |
| Finish options | Brushed, Chrome, Gun Metal Grey, Matte Black, Matte White, Urban Brass |
| Mixer tap options | Gooseneck Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug |
| Supplier | Billi UK Limited, 020 7456 6789 |
Busy workplace kitchens often need the drinking-water tap and the sink to be used independently. With the Quadra Plus 15, the XL levered dispenser provides filtered boiling and chilled water while a separate gooseneck mixer supplies hot and cold sink water.
The Plus 15 has a published initial mixer hot-water drawdown of 15 litres at 50°C, alongside the boiling and chilled drinking-water supply. It produces the mixer's hot water from the incoming cold mains feed, without requiring a separate hot-water supply to the unit.
Rated for workplaces of up to 100 people, it uses water-cooled heat exchange and requires no ventilation grilles in the surrounding cabinetry. A dedicated 20A electrical connection is needed and should be accounted for during specification.
