Quadra Plus 15 with XL Levered Dispenser & Paddle Mixer
Boiling & chilled water for up to 100 people
Boiling
Chilled
The Quadra Plus 15 pairs an XL levered dispenser for filtered boiling and chilled water with a separate paddle mixer for hot and cold sink water. Rated for up to 100 people, it provides both services from one under-counter system.
- Up to 100 people
- XL Levered
- 340 (H) x 315 (W) x 465 (D) mm
Finish
Chrome
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 100 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug.
Built into every Quadra Plus 15 with XL Levered Dispenser & Paddle Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 15 with XL Levered Dispenser & Paddle Mixer |
|---|---|
| Product code | 904105LP |
| Suggested capacity | Up to 100 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XL Levered |
| Finish options | Brushed, Chrome, Gun Metal Grey, Matte Black, Matte White, Urban Brass |
| Mixer tap options | Paddle Lever Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |

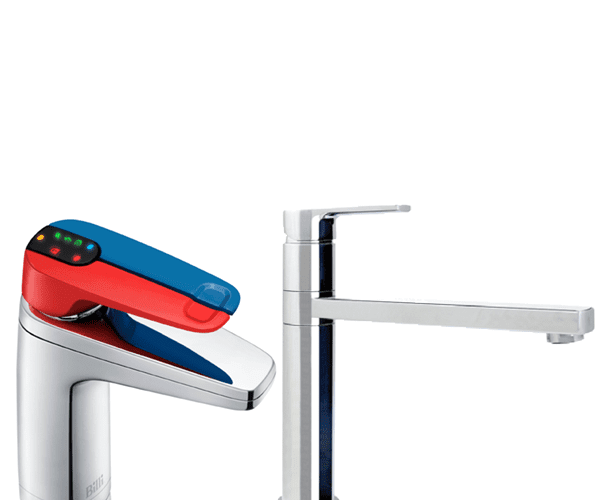

When the sink and drinking-water dispenser see frequent use, having a separate tap for each keeps their functions clearly defined. This Quadra Plus 15 uses Billi's familiar XL dispenser for filtered boiling and chilled water, with position-sensitive levers and a boiling-water safety control. The paddle mixer serves the sink independently.
Hot water for the mixer is generated by the same under-counter system using the incoming cold mains supply. The Plus 15 has a published initial mixer hot-water drawdown of 15 litres at 50°C, as well as capacity suited to workplaces of up to 100 people.
The water-cooled unit recovers waste heat and can be installed without ventilation grilles in the surrounding kitchen cabinetry.
Drawings, data sheets & guides
Everything here is free to download. No form, no sign-up.
Data sheets
Drawings & CAD
User guides
Request a quote
Tell us about your site and we’ll come back with a written quote for Quadra Plus 15 with XL Levered Dispenser & Paddle Mixer.
Rather talk it through? Call 020 7456 6789 , or download the spec sheet instead.
Not sure which model fits your site?
Tell us how many people you need to serve and where it’s going, and we’ll
recommend the right unit, or send an engineer to look at the space first.
