Quadra Plus 15 with XL Levered Dispenser with Red/Blue Levers & Paddle Mixer
Boiling & chilled water for up to 100 people
Boiling
Chilled

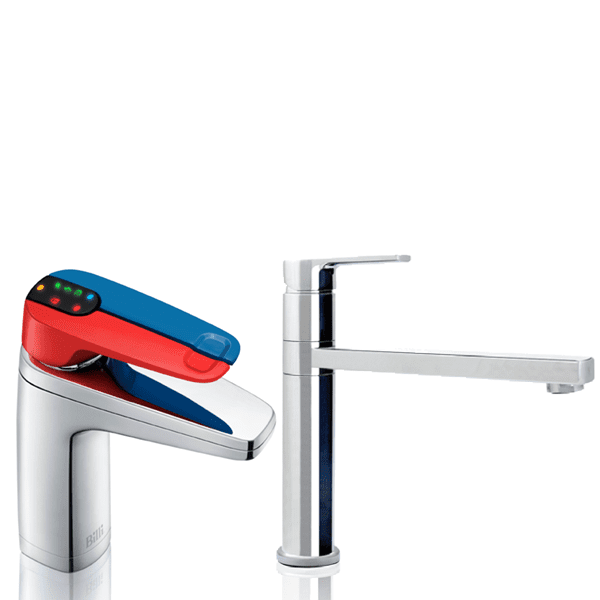

This Quadra Plus 15 has an XL drinking-water dispenser with contrasting red and blue levers, plus a separate paddle mixer for hot and cold sink water. It supplies filtered boiling and chilled water for workplaces of up to 100 people.
Red/Blue levers are available with alternative dispenser finishes, with optional braille pads also available upon request.
- Up to 100 people
- XL Levered
- 340 (H) x 315 (W) x 465 (D) mm
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 100 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug.
Built into every Quadra Plus 15 with XL Levered Dispenser with Red/Blue Levers & Paddle Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 15 with XL Levered Dispenser with Red/Blue Levers & Paddle Mixer |
|---|---|
| Product code | 904105LPRB |
| Suggested capacity | Up to 100 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XL Levered |
| Finish options | Chrome |
| Mixer tap options | Paddle Lever Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |
Red and blue levers distinguish the drinking-water controls on this version of the Quadra Plus 15. Their contrast may help where visibility is an important consideration, although the accessibility of the finished installation also depends on tap positioning and the surrounding kitchen layout.
The XL dispenser supplies filtered boiling and chilled water, with a separate paddle mixer providing hot and cold water for the sink. The system produces mixer hot water from the cold mains feed and has a published initial drawdown of 15 litres at 50°C.
With capacity specified for workplaces of up to 100 people, this configuration suits larger shared kitchens. Water-cooled heat exchange also removes the need for ventilation grilles in the cabinetry around the under-counter unit.
