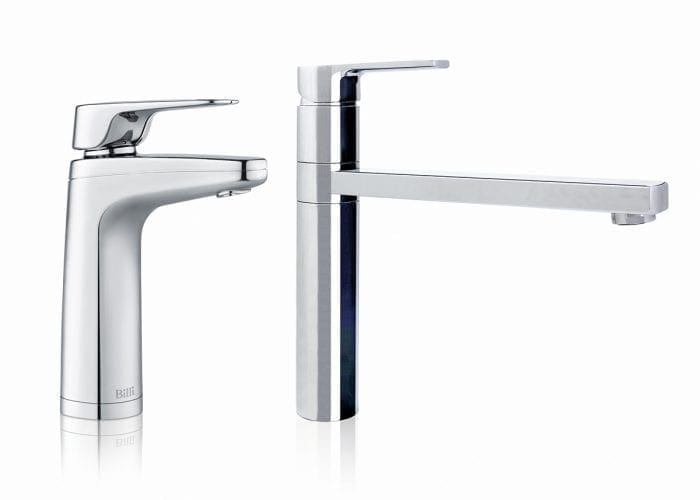

Billi Quadra 4100 with XL Levered Dispenser
Boiling
Chilled
View product

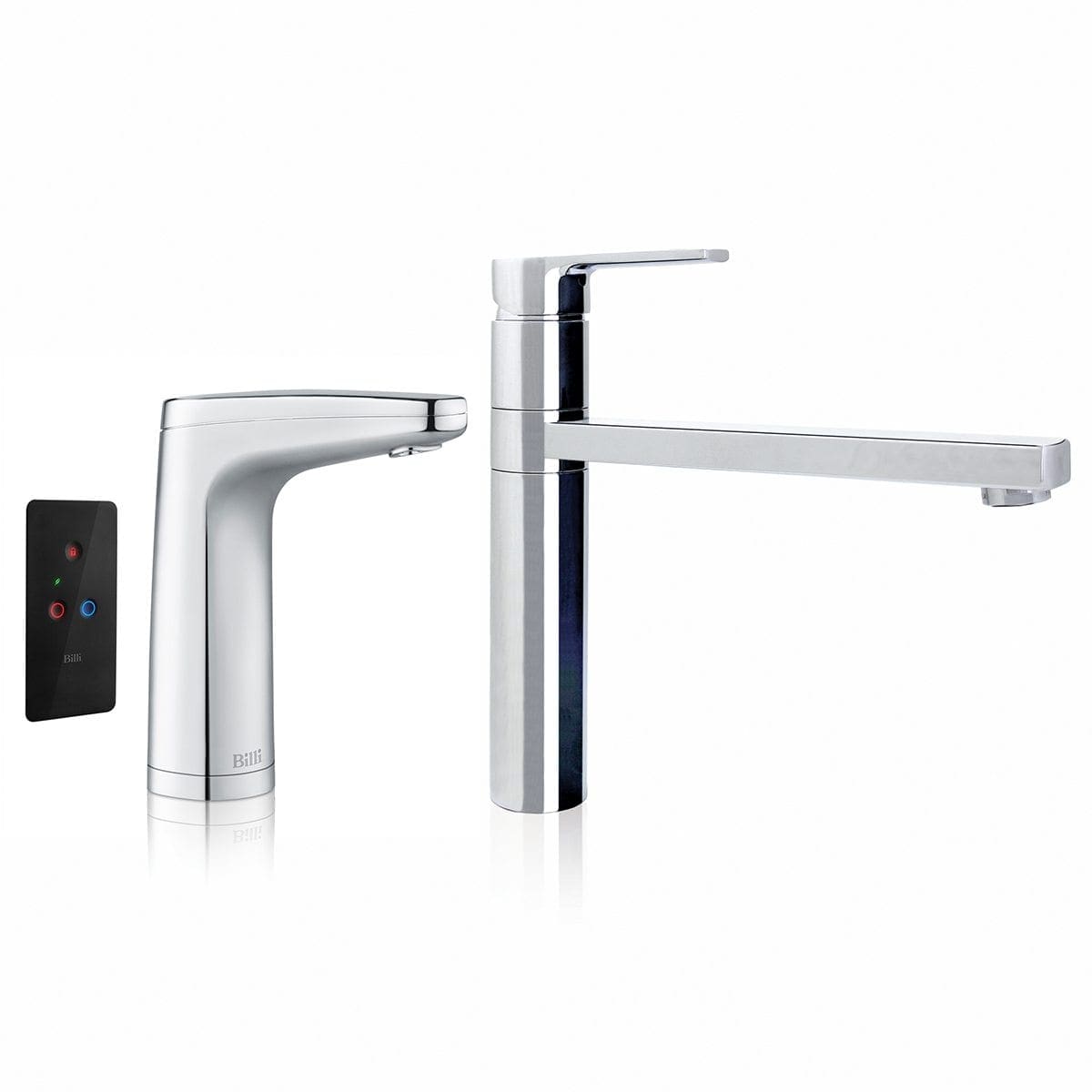

Quadra Plus 15 with XR Remote Dispenser & Paddle Mixer
Boiling & chilled water for up to 100 people
Boiling
Chilled
The Quadra Plus 15 delivers filtered boiling and chilled water through an XR dispenser with a separate control panel. A paddle mixer provides hot and cold sink water. The layout offers more choice over where the drinking-water controls sit.
- Up to 100 people
- XR Remote
- 340 (H) x 315 (W) x 465 (D) mm
Prefer to talk it through? 020 7456 6789
Trusted by thousands of companies
Is this the right one for your site?
- Serves
- Up to 100 people
- Outputs
- Boiling, Chilled
- Under-bench unit
- 340 (H) x 315 (W) x 465 (D) mm
- Power supply
- A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug.
Built into every Quadra Plus 15 with XR Remote Dispenser & Paddle Mixer
-
No Cupboard Ventilation Required
-
Space Saving Design
-
Safe To Operate
-
Energy Efficient
-
Heat Exchange Technology
-
Water Cooled Technology
-
GreenTag Certified
-
Easy Installation
What you get with Billi
-
WarrantyThe Billi Quadra Plus Range is covered by a comprehensive 2 year warranty on all parts and labour.
Full specification
Full specification 12 items
| Model | Billi Quadra Plus 15 with XR Remote Dispenser & Paddle Mixer |
|---|---|
| Product code | 904105RP |
| Suggested capacity | Up to 100 people |
| Water outputs | Boiling, Chilled |
| Dispenser design | XR Remote |
| Finish options | Chrome |
| Mixer tap options | Paddle Lever Mixer Tap |
| Riser & font options | 120mm Riser, 120mm Riser & Font |
| Tubing extension kits | For Mixer Tap - 1.8mtrs |
| Under-bench unit size | 340 (H) x 315 (W) x 465 (D) mm |
| Power supply | A dedicated 20amp double pole switched spur must be fitted at a high level and accessible within the cupboard. The unit comes with a 1 metre flex cord and plug. |
| Supplier | Billi UK Limited, 020 7456 6789 |
Positioning matters in a busy shared kitchen, particularly when different people need to reach the controls. On this Quadra Plus 15, the XR drinking-water dispenser has a remote panel that can be located separately from the water outlet. Its position should be considered as part of the overall kitchen design rather than assumed to make an installation accessible.
The XR outlet supplies filtered boiling and chilled water. A separate paddle mixer handles hot and cold sink water, with the under-counter unit heating the mixer's water from a cold mains feed. The Plus 15 is rated for workplaces of up to 100 people and has a published initial mixer hot-water drawdown of 15 litres at 50°C.
Water-cooled heat exchange means the surrounding cabinetry does not need ventilation grilles.
Drawings, data sheets & guides
Everything here is free to download. No form, no sign-up.
Data sheets
Drawings & CAD
User guides
Request a quote
Tell us about your site and we’ll come back with a written quote for Quadra Plus 15 with XR Remote Dispenser & Paddle Mixer.
Rather talk it through? Call 020 7456 6789 , or download the spec sheet instead.
Not sure which model fits your site?
Tell us how many people you need to serve and where it’s going, and we’ll
recommend the right unit, or send an engineer to look at the space first.
